Avon Old Farms School in Connecticut replaced its 100-year-old windows with new aluminum-framed units.
The units were manufactured by Winco Window Company and finished by Linetec in a Steel Wool color to match the historical aesthetic. The durable, low-maintenance finishes support the school’s sustainability goals and create a comfortable learning center for its 400-plus students in 9-12 grades.
The Avon Old Farms boarding school for boys was founded in 1927 and designed by one of the first licensed female architects in American history, Theodate Pop Riddle. The private school’s Cotswold Tudor architectural style follows the form of medieval village structures in England’s rural southwestern region of the same name. Sometimes referred to as “storybook style,” notable features include steep roofs, prominent chimneys, and side-hinged, project-out, divided lite windows.
Replicating the original windows’ appearance was simplified with WINCO Series 1150S 2-inch fixed and casement units in multiple configurations. These windows have an integral beveled glazing stop and applied muntin grid to simulate the historic look of true divided lites without compromising on performance.
70% PVDF Resin-Based Architectural Coating
All of the Winco Window’s aluminum frames, grids, and trim were finished by Linetec in the Steel Wool gray color using a 70% PVDF resin-based architectural coating. Using aluminum extrusions from Winco, SWI also custom-fabricated some of the school’s small, fixed, upper story windows.
The window retrofit was planned and executed over four years during school breaks starting in 2018 and concluding in 2022. Stanley Wiesen, Inc. (SWI) Glass & Metal removed and replaced dozens of windows each year. The first phase included 186 units at the Diogenes Dormitory and headmaster’s house. The second phase involved 205 windows at Pelican Dormitory and the first part of Eagle Dormitory. The third phase finished Eagle Dormitory and the Administrative building’s 224 windows. The final phase will include 241 units at the Elephant Dormitory.
The windows look onto 900 acres of land in rural north-central Connecticut. The original school buildings at Avon Old Farms were constructed from locally sourced materials from the surrounding forests and quarries of the area. Respecting its natural environment, the school’s sustainability initiatives include pollinator-friendly landscaping, water-efficient systems, and energy-conserving and energy-producing efforts to reduce its carbon footprint.

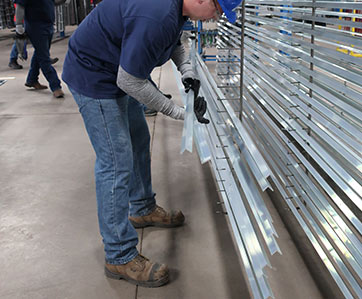

As an environmentally responsible finisher, Linetec also applied the windows’ high-performance painted coatings under quality-controlled factory conditions to safely capture and destroy the VOCs present in liquid solvent-based paints before the finished products’ arrival at the job site. These finishes meet the stringent AAMA 2605 industry standard, which is verified to exhibit outstanding resistance to humidity, color change, chalk, gloss loss, and chemicals, and carry a 10-year warranty.
The windows’ high performance and durable finishes help minimize maintenance and repairs throughout their long lifespan. At the end of their useful life on the buildings, the aluminum can be recycled and reused, further exemplifying the school’s sustainability initiatives.
